| Brand | OtoSystem |
|---|---|
| Model Number | 1 |
| Colour | Graphite Black |
| Product Dimensions | 45 x 75 x 80 cm; 76 kg |
| Material | Stainless Steel |
| Energy Efficiency Class | A++ to G |
| Item Weight | 76 kg |
Wood Burning Cooking Stove With Oven,1P34,10 kw [Energy Class A]
Material Stainless Steel
Colour Graphite Black
Product dimensions 45D x 75W x 80H centimetres
Item weight 76 Kilograms
-
Detail
Product description

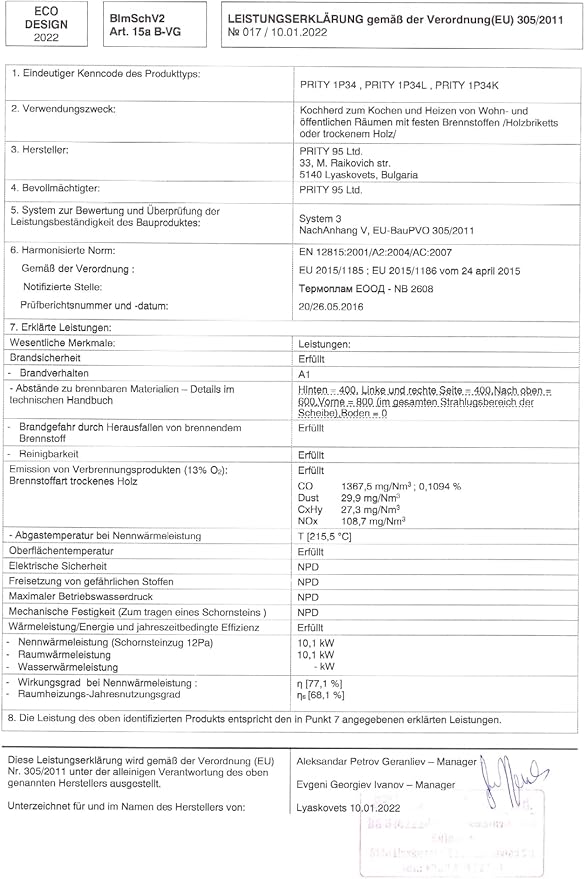

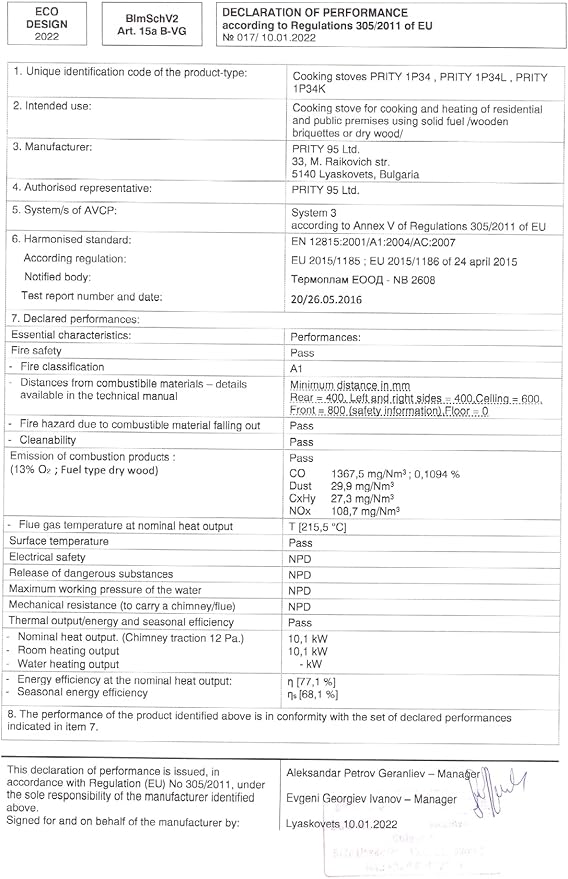

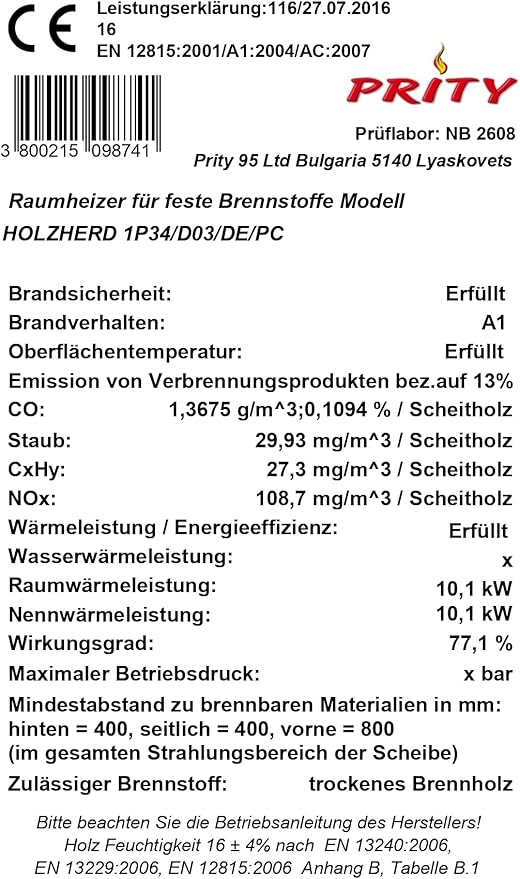

EN standard; certification: CE; BlmSchV2; ECO design

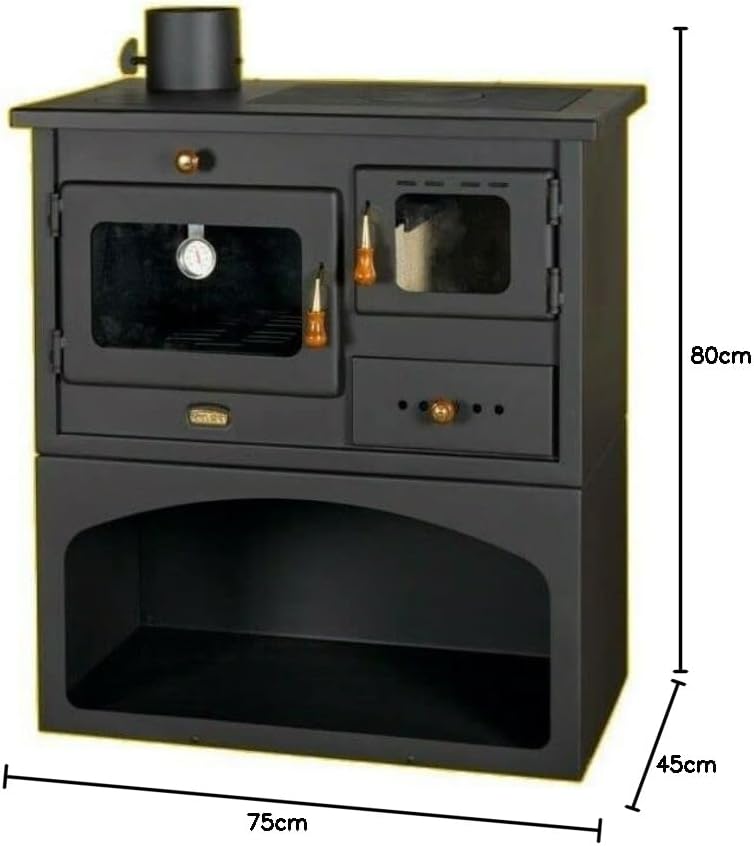

Overall dimensions(mm):750x450x800(W x D x H)
Dimensions combustion chamber(mm):200x344x275(W x D x H)
Dimensions of the Oven(mm):345x380x200(W x D x H)
Weight 76kg
Approximate heating surface (m²): 48
Approximate heating capacity (m³): 125
Nominal Space Heating Output:10kW
Flue (mm):130
Construction material:Steel
Efficiency % :60-80
Body made of 2mm thick sheet steel
Top made of 3-4mm thick sheet steel.
Combustion chamber lined with firebricks that accumulate heat and increase burning temperature.
The combustion chamber is equipped with heat resistant ceramic glass.
Cast iron grate.
Front damper for controlling the air supply.
Smoke damper for adjusting the flame intensity.
Hardened glass pane of the oven.
Equipped with a thermometer.
Wooden door handles.
Color : graphite black
Fuel type – wood,wood coal
